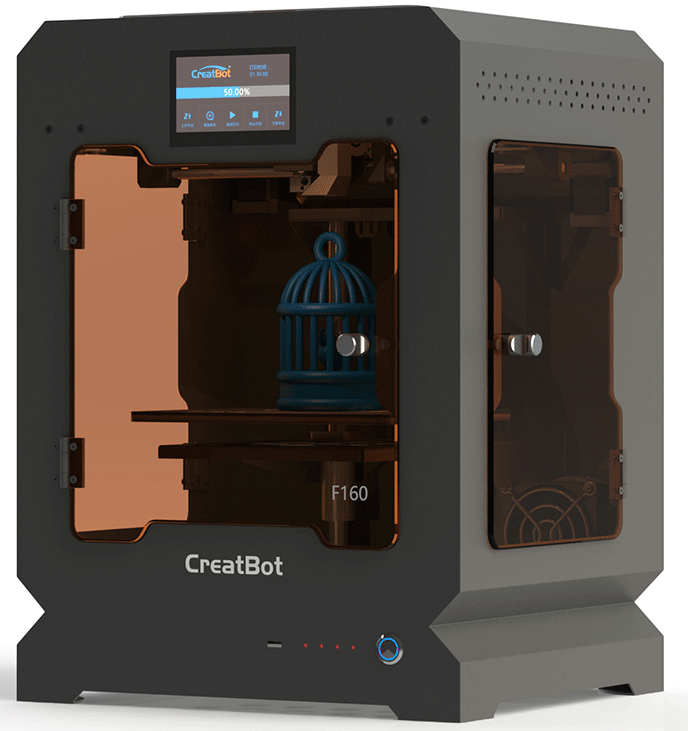

CreatBot F160 – Precise high-temperature FFF 3D printer
This great high-temperature FFF 3D printer can be used to additive manufactureobjects out of high-tech filaments, as Nylon or ABS. Furthermore, you can process other materials which need temperatures up to 420 ° C. With the CreatBot F160 you can produce with experimental 3D printing filaments. Moreover, this precise 3D printer convinces with its high manufacturing quality.
Main product characteristics
Nozzle temperatures up to 420 ° C
Main product characteristics
- Build chamber: 160 * 160 * 200 mm
- Manufacturing of ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible.
- Bed temperature up to 130 ° C
- Solid frame offers high accuracy
- Higih Precision up to: 0.04 mm
- Speed up to: 120 mm/s
3D print 420°C Hot-end
Realize high-temperature 3D prints with up to 420°C. This kind of nozzle allows you to manufacture a wide a variety of filaments. You can 3D print with high-tech thermoplastics as ABS or Nylon. The nozzle height can also be adjusted at a very-detailed level.
High Precision & High Speed
We exclusively researched and develop the extruder feeding system. The CreatBot F160 supports high-speed 3D printing. Its additive manufacturing accuracy can reach high resolution up to 0.04 mm. Furthermore, it allows to extrude filament steady without clogging.
- Speed up to: 120 mm/s
Stability
The whole-steel body not only ensures the stability when 3D printing, but also extend the usage period greatly. Its optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for more than 5 years and 8000 hours.
Fully Enclosed High-Temperature Chamber
A completely enclosed building chamber can block all external interference and reduce noise. This hot chamber can provide a constant room temperature.This prevents objects deforming (warping) when 3D printing. A closed building chamber is the key for successful Additive Manufacturing with ABS, Nylon, or other high-tech filaments.
Outage Restored & Filament Detection
When the power supply of the CreatBot F160 high-temperature 3D printer is interrupted, it will automatically memorize the current position and save 3D print data. Resume 3D printing after the power supply works again.The CreatBot F160 will detect, when it runs out of filament. Simply lower the build platform and withdraw filament when power off suddenly. It will continue 3D printing from where it stopped after power’s on. Thus, don’t suffer from anymore from the end of your filament.
Touch-Screen
This 3D printer has an all-English-menu. The touch screen, its trouble-free operation and friendly use makes the CreatBot F160 the ideal generative manufacturing machine for your company. One push to warm up, one key to manufacturing, 3D printing made easy. Maintenance operations can be performed with many other shortcut keys, too.
Efficiently Platform & 130°C Hotbed
The hotbed consists of heat able aluminium surface, which can be heat up to 130°C. The heating process is very fast. The platform is attached with BuiltTak 3D printing stickers. The manufactured object can be stick on the Buildtak tightly and won’t get deformed. No warping that destroys your 3D print.
The CreatBot F160 is a precise high-temperature FFF 3D printer. Get it now for a really fair price.
Construction an Technical Details | |||||||||||||||||||||||||||||||||||||||
Usable Nozzle Type | MK8 | ||||||||||||||||||||||||||||||||||||||
Usable Filament Diameter | 1.75 mm | ||||||||||||||||||||||||||||||||||||||
Max Nozzle Temperature | 420 ºC | ||||||||||||||||||||||||||||||||||||||
Open Filament System | Yes | ||||||||||||||||||||||||||||||||||||||
Extruder Type | Direct drive | ||||||||||||||||||||||||||||||||||||||
Recommended Printing Speed Max | 300 mm/s ( | Build Area | 160 mm x 160 mm x 200 mm | Build Plate Temp Max | 150 ºC | Build Plate Surface | BuildTak | Build Plate Material | Aluminum plate | Build Plate Attachment | fixed | Build Plate Leveling System | manual Leveling | Build Chamber During Process | Open or Closed | Extruder Number Of | 1 | Installation Space / Requirements | Total Mass Overall Dimensions | 320 mm x 370 mm x 490 mm | Total Weight | 18 kg | Ambient Operating Temperature | 15°C - 32°C | Max Power Consumption | 340 W | Voltage | AC: 100 V - 230 V (50-60 Hz) | Equipment | Hepa Filter | No | Filament Runout Sensor | Yes | ||||||
Power Loss Fail Safe | Yes | ||||||||||||||||||||||||||||||||||||||
Touch Screen | Yes | ||||||||||||||||||||||||||||||||||||||
Connection | |||||||||||||||||||||||||||||||||||||||
USB Port | Yes | ||||||||||||||||||||||||||||||||||||||
WLAN | No | ||||||||||||||||||||||||||||||||||||||
Accuracy | |||||||||||||||||||||||||||||||||||||||
Layer Height | 0.01 - 0.5 mm | ||||||||||||||||||||||||||||||||||||||
Resolution | 0.04 mm | ||||||||||||||||||||||||||||||||||||||
Shipping | |||||||||||||||||||||||||||||||||||||||
Shipping Box | 420 mm x 470 mm x 600 mm | ||||||||||||||||||||||||||||||||||||||
Shipping Weight | 25 kg | ||||||||||||||||||||||||||||||||||||||
CreatBot F160
