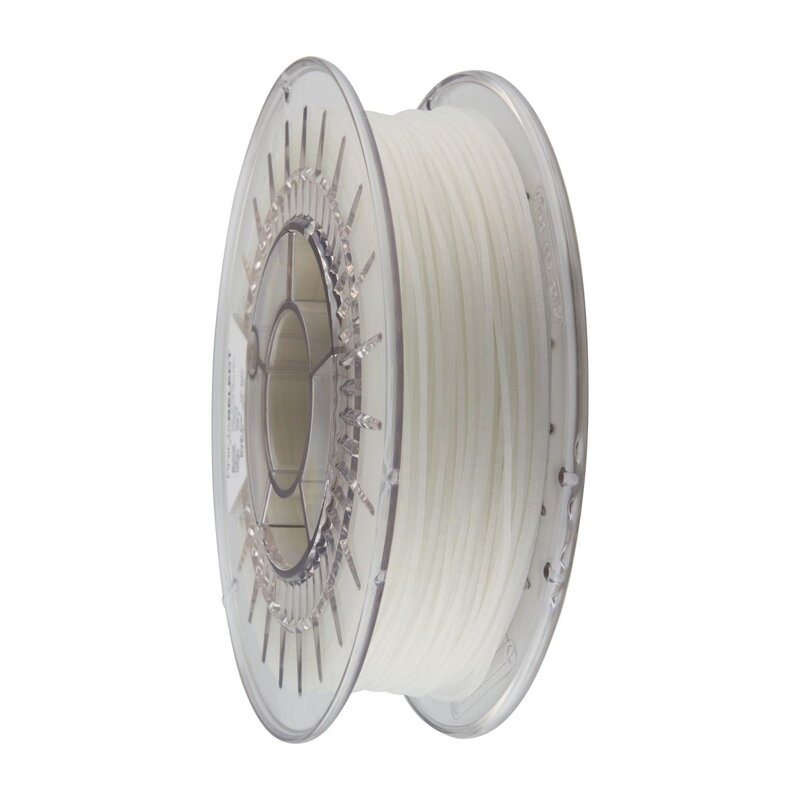

PrimaSelect NylonPower Glass Fibre - 1.75mm - 500g - Natural

PrimaSelect NylonPower Glass Fiber – The latest high-performance filament for your 3D printer

PrimaSelect NylonPower Glass Fiber is the latest high-performance filament for your 3D printer. The 3D printing material is based on Nylon 12 and is 16 % glass fiber reinforced. This composition results in an optimally resistant filament. Nylon glass filament is perfect for additive manufacturing of components for the automotive industry, drone construction and RC parts.

Main material properties NylonPower fiber reinforced PA12:

• High chemical and thermal resistance
• Excellent surface quality
• Minimized warping tendency compared to conventional nylon
• Easy to process

3D prints very strong parts of NylonPower and glass fiber

PrimaSelect NylonPower Glass Fiber is an extremely useful material with unique material properties. In this filament, the nylon is reinforced with small, cut-glass fiber strands. PrimaSelect NylonPower Filament offers you incredible stiffness, structure, and excellent layer adhesion.

Simply process the NylonPower filament with glass

Furthermore, NylonPower is very easy to process and has a matt surface. The perfect 3D prints are very stiff, rigid, and ideal if you need an object with a high stiffness/weight ratio. To process PrimaSelect NylonPower Filament, use a heated printing bed - set to 60 ˚C - to achieve good adhesion of the first layer to the building platform.

Process NylonPower Glass Fibre with a Steel Nozzle

Because of the highly abrasive properties of PrimaSelect NylonPower (the nozzle wears quickly due to abrasion), we recommend that you use a hardened steel nozzle for this filament. Using a normal brass nozzle is not a problem, but the nozzle will wear out in a short time.PrimaSelect NylonPower adheres to glass coated with adhesive spray or adhesive.

Material properties of Nylon Glass Fibre filament:

• Weight and spool: Each spool comes with 500 grams of high quality filament. NylonPower is supplied packed on a clear spool with a strong desiccant to avoid moisture
• Perfect diameter tolerance:NylonPower filament is controlled throughout the whole additive manufacturing process. This ensures that you receive a filament with a diameter tolerance of +/-0.05 mm
• Perfect spooling: We have made great efforts to make every spool of filament perfect. So you can be sure that the filament will not get tangled on the spool
• Easy to 3D print: The glass fibres mixed with nylon make this material very easy to process on most 3D printers. We recommend a hardened nozzle

Tips and tricks for processing PrimaSelect NylonPower with glass fibers on your 3D printer

Here you’ll find tips and tricks for processing PrimaSelect NylonPower with glass fibers on your 3D printer.

Watch your filament and keep it away from moisture

The glass fibers contained in PrimaSelect NylonPower reduce the amount of water that can be absorbed. However, for optimal processing you should take care to keep the filament away from moisture and to protect it.

To do this, you must store PrimaCreator NylonPower in a dry place immediately after unpacking. The filament is supplied in a vacuum-sealed bag with desiccant so that the first 3D print succeeds immediately and gives you a perfect result.

In case of exposure to moisture, we strongly recommend that you dry your NylonPower glass fibre filament before starting 3D printing. To do this, simply place the entire coil in the oven at 80 °C for 5 to 7 hours. This will dry your coil and allow you to start a new 3D print.

Optimum processing temperature of PrimaSelect NylonPower

PrimaSelect NylonPower requires an extruder temperature of 250 - 265 °C for optimal extrusion. This filament can be processed on most 3D printers. However, we strongly recommend that you use a full metal extruder for higher temperatures. PrimaSelect NylonPower glass fibre filament can be processed at lower temperatures, too. However, you should always keep in mind that you will not get the same strength in the finished parts when using lower temperatures.

This filament contains glass fibers, making it very abrasive for your nozzle. We strongly recommend that you use a hardened steel nozzle for this filament, as a normal brass nozzle will be worn out by nylon filament in a very short time.

Larger 0.6 or 0.8 mm nozzles produce very strong 3D prints and reduce the risk of clogging the nozzle. However, you can also use it with a 0.4 mm nozzle.

NylonPower glass fibre does not adhere well to PEI, BuildTak, or similar surfaces. Glass is the best surface for use with Magigoo, PrintaFix, PVA-based glue stick or further adhesives. Do not use fans when 3D printing with NylonPower.

Buy PrimaSelect NylonPower Glass Fiber and you'll get the latest generation of high-performance filament for your 3D printer.

Filament Typ	NylonPower Glass Fibre
Diameter	1,75 mm
Tolerance	0,05 mm
Weight	0,50 kg
Lenght	194 m
Color	Natural - ohne Color Code
Recomended Printing Temp Min	250 ºC
Recomended Printing Temp Max	265 ºC
Recomended Printbed Temperature Min	60 ºC
Recomended Printbed Temperature Max	70 ºC
Recomended Printing Speed Min	40 mm/s
Recommended Printing Speed Max	40 mm/s
Recomended Fan Speed Min	20 %
Recomended Fan Speed Max	60 %
General
Specific gravity	1,07 g/cm3   ISO 1183
Mold Shrinkage	,5    ISO 294
Specific volume resistivity	10^11 Ωm    IEC 60243
Temperature
Heat deflection temp	160 °C   ISO 75
Tensile
Tensile strength	64,7 MPa   ISO 527
Tensile modulus	2534 MPa   ISO 527
Elongation
Elongation at break	9,2 %   ISO 527
Flexural
Flexural Strenght	125 MPa   ISO 178
Flexural Modulus	3131 MPa   ISO 178
Other
Impact Strength	53,6 KJ/m2   ISO 179ISO 1802-1eU
Shore D Hardness	77 MPa D   ISO 2039-1
Filament spool selection
1. Prima Select 500g/750g
Ø Ds	200 mm
Ø ds	53 mm
Ws	51,5 mm
ws	45 mm
Emty weight Spool	0,229 kg
Material of Spool	PC
DB	205 mm
WB	62 mm
HB	213 mm
Emty weight box	0,105 kg
Material of box	Carboard
