Hyper FFF technology
The Hyper Speed Upgrade Kit is the first product from Raise3D’s Hyper FFF technology. With the upgrade, the printing speed of a Pro3 Series3D printer is boosted from an average of 50-80mm/s to 200-350mm/s, and acceleration is boosted from 1,000 mm/s2 to 10,000 mm/s2, with no loss of accuracy or part quality.

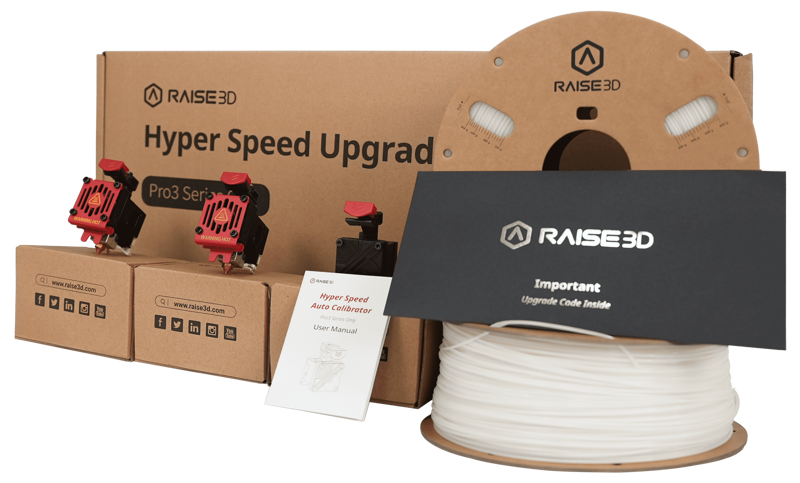

The Kit includes:
- An Upgrade Letter
- Software Upgrades
- Two Hyper Speed Hot Ends 0,4mm (Pro3 Series Only)
- A Hyper Speed Auto Calibrator (Pro3 Series Only)
- A Spool of Hyper Speed PLA Filament White 1 kg / 1.75 mm
- A Spool of Hyper Speed ABS Filament Natural 1 kg / 1.75 mm
Hyper Speed ABS Filament
Hyper Speed ABS Filament is one of the specially developed filaments from the High-speed filament line for FFF printing. When printing at high speeds, the filament is rapidly fed into the heat block, and the polymer has very little time to melt, from solid to a molten state, which can cause nozzle clogging and poor bonding quality between layers. Additionally, ABS can be subject to warpage and delamination of the printed part during high-speed printing without a heated chamber.
With optimized molecular weight and stiffness, Raise3D Hyper Speed ABS can achieve faster melting and cooling during high-speed printing, which results in lower temperature gradient and inner stress of printed part. With almost no warpage and improved interlayer bonding, Hyper Speed ABS is also perfectly suitable for many functional prototyping parts, tools, and fittings with many different possibilities for post-processing.
Printing settings:
- Nozzle temperature: 210-260 ℃
- Printing Speed: 25-300 mm/s
- Build Platform Temperature: 55-65℃
- Layer Height: 0.1 – 0.2 mm
- Dry Temperature: 50℃
Hyper Speed PLA Filament
Hyper Speed PLA filament is one of the specially developed filaments from the High-speed filament line for FFF printing. When printing at high speeds, the filament is rapidly fed into the heat block, and the polymer has very little time to melt from solid to a molten state, which can cause nozzle clogging and poor bonding quality between layers. With optimized molecular weight and tuned flowability, Raise3D Hyper Speed PLA can achieve faster melting in the hot end and much quicker cooling after the material has been extruded. As a result, the surface quality of parts printed by Hyper Speed filaments is smooth and most of the sharp details are kept. Most importantly, thanks to optimized molecular weight, Hyper Speed PLA shows excellent interlayer bonding quality and Z-direction strength. Therefore, Hyper speed PLA can be used for concept models and figures, prototyping, etc.
Printing settings:
- Nozzle temperature: 200-230 ℃
- Printing Speed: 50-300 mm/s
- Build Platform Temperature: 45-60℃
- Layer Height: 0.1 – 0.2 mm
- Dry Temperature: 40℃
Hyper Speed Auto Calibrator
With this auto frequency calibrator, the Pro3 Series printer will be able to measure its own frequency and adjust the parameters by itself. With Pro3 Series’ robust construction and stable design, the printer can keep its own frequency for months without shifting. It is recommended that the calibration process be carried out every 2-3 months. A manual calibration process is also included.
Hyper Speed Hot End 0.4 mm
High-flowrate hot ends designed for the Pro3 Series on Hyper Speed Mode
Please note that for Hyper Speed to function correctly, the Hyper Speed Hot Ends 0.4mm (Pro3 Series Only), the Hyper Speed Auto Calibrator (Pro3 Series Only), and the Hyper Speed Filaments must be installed on a Pro3 Series printer activated with Hyper Speed Mode. The absence of any of these components may result in printing failure.
Raise3D Hyper Speed Upgrade for Pro3 Series
