3DPRINTMILL (CR-30) 3D PRINTER
3DPrintMill is a feature of infinite-length printing and bulk printing, thereby time-saving in printing and cost-efficient.The special infinite-Z belt is the first Creality 3D printer to realize infinite build volume in the world. Since 3DPrintMill is going to be released on Ceality’s sixth anniversary, it will make a stir in the whole 3D printing industry.
Features
- Infinite-Z build volume
- Stable Core-XY structure
- Broadband power supply
- Exclusive slice software
- 45° angled hot-end
- Nylon conveyor belt
- Filament breakage detector
- Ultra-silent motherboard
Infinite-Z-axis for Endless Printing
Equipped with the rolling conveyor-belt, it realizes continuous printing. No worries to print the infinite length model. High productivity, time-saving, and cost-efficient(Print dimension: 200*170*∞mm)
Stable CoreXY Structure
The stable and sturdy CoreXY precision structure with isosceles right triangle support gives you an extraordinary printing experience
Nylon Conveyor Belt
Made of wear-resistant Nylon, the conveyor belt features excellent adhesion to the model. The printed model can fall off automatically as the belt rolls to the end, thus free your handStrong adhesion| Hassle-free removal | Wear-resistant| Well-balanced conveyance*Easy to replace the conveyor-belt
Unique 45° Printing Angle
The unique 45 ° angle design offsets the limitations of the vertical nozzle structure. Equipped with a high-performance nozzle kit, it achieves continuous printing along the horizontal Z-axis
Adaptive Broadband Power Supply
The brand 24 V / 350 W power supply can automatically adapt to the global AC100-120V/ 200-240V. Rest assured of the system stability
Filament Breakage Detector
Whenever there is a possible accident like filament run-out or filament breakage, the smart sensor forces the machine to suspend printing. Printing will be automatically resumed after the new filament feed-in.
Exclusive Slice Software for 3DPrintMill Only
This slicing software CrealityBelt is specially designed for 3DPrintMill. CrealityBelt is truly user-friendly ascribing to its simple operation
Ultra-silent Motherboard
Silent chipset and low noise enhances the user experience
Hassle-free Leveling
Leveling already finished at the factory and the printer ready to use after installation
Triple Fans to Cool Down
Ensure high-quality printing and prolong the service life of the machine
Resume Printing
Intelligent power protection device and no fear of power failure
*A removable extension bracket is available for installing to prevent the model from falling during printing
| Construction an Technical Details | |||
| Usable Nozzle Type | MK8 | ||
| Usable Filament Diameter | 1.75 mm | ||
| Max Nozzle Temperature | 240 ºC | ||
| Open Filament System | Yes | ||
| Extruder Type | Bowden | ||
| Build Area | ∞ mm x 200 mm x 170 mm | ||
| Build Plate Temp Max | 100 ºC | ||
| Build Plate Material | Nylon conveyor belt | ||
| Build Plate Attachment | belt | ||
| Build Plate Leveling System | manual Leveling | ||
| Build Chamber During Process | Open | ||
| Extruder Number Of | 1 | ||
| Installation Space / Requirements | |||
| Total Mass Overall Dimensions | 535 mm x 656 mm x 410 mm | ||
| Total Weight | 16.5 kg | ||
| Max Power Consumption | 350 W | ||
| Voltage | AC: 100 V / 240 V | DC: 24 V | |
| Equipment | |||
| Hepa Filter | No | ||
| Filament Runout Sensor | Yes | ||
| Power Loss Fail Safe | Yes | ||
| Touch Screen | No | ||
| Connection | |||
| SD Card | Yes | ||
| USB Port | Yes | ||
| WLAN | No | ||
| Accuracy | |||
| Layer Height | 0.1 - 0.4 mm | ||
| Resolution | 0.1 mm | ||
| Shipping | |||
| Shipping Box | 685 mm x 565 mm x 302 mm | ||
| Shipping Weight | 20.5 kg | ||

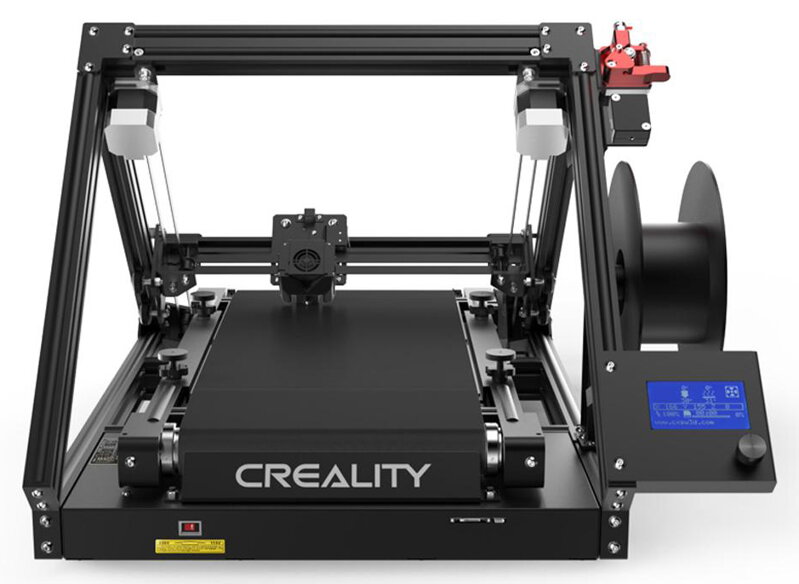

Creality CR-30 Printmill Belt Printer
