Popis
High speed & low noise
The CoreXY structure allows high-speed printing at 250mm/s and operating environment noise below 50dB.
High quality output
The dual Z-axis ball screw design allows a more accurate positioning when printing and ensures smooth model surface, leading to a better printing quality.
Stable printing
The big platform can support up to 30 kg and have a maximum build volume of 350 x 350 x 600 mm. Further the 16mm-diameter z-axis guide and 16mm TBI ball screws on both sides ensures stability when printing larger models.
| Construction an Technical Details | |||||||||||||||||
| Usable Filament Diameter | 1.75 mm | ||||||||||||||||
| Max Nozzle Temperature | 320 ºC | ||||||||||||||||
| Open Filament System | Yes | ||||||||||||||||
| Extruder Type | Direct drive | ||||||||||||||||
| Recommended Printing Speed Max | 250 mm/s ( | Build Area | 350 mm x 350 mm x 600 mm | Build Plate Temp Max | 120 ºC | Build Plate Surface | BuildTak | Build Plate Material | Flexible Steel Plate | Build Plate Attachment | magnetic | Build Chamber During Process | Open or Closed | Build Chamber Heated | No | Filament Chamber Closed | Yes |
| Extruder Number Of | 1 | ||||||||||||||||
| Installation Space / Requirements | |||||||||||||||||
| Total Mass Overall Dimensions | 635,5 mm x 590,5 mm x 1060 mm | ||||||||||||||||
| Total Weight | 65 kg | ||||||||||||||||
| Ambient Operating Temperature | 15°C - 30°C | ||||||||||||||||
| Max Power Consumption | 650 W | ||||||||||||||||
| Voltage | AC: 100 V - 240 V, 6,25 A | DC: 24 V | |||||||||||||||
| Equipment | |||||||||||||||||
| Hepa Filter | Yes | ||||||||||||||||
| Filament Runout Sensor | Yes | ||||||||||||||||
| Power Loss Fail Safe | Yes | ||||||||||||||||
| Touch Screen | Yes | ||||||||||||||||
| Camera | Yes | ||||||||||||||||
| Memory Internal | Yes, 8 Gbyte | ||||||||||||||||
| Connection | |||||||||||||||||
| USB Port | Yes | ||||||||||||||||
| Ethernet Port | Yes | ||||||||||||||||
| WLAN | Yes | ||||||||||||||||
| Cloud Control | Yes | ||||||||||||||||
| Accuracy | |||||||||||||||||
| Layer Height | 0.05 - 0.4 mm | ||||||||||||||||
| Resolution | 0.15 mm | ||||||||||||||||
| Shipping | |||||||||||||||||
| Shipping Box | 775 mm x 690 mm x 1235 mm | ||||||||||||||||
| Shipping Weight | 143.5 kg | ||||||||||||||||

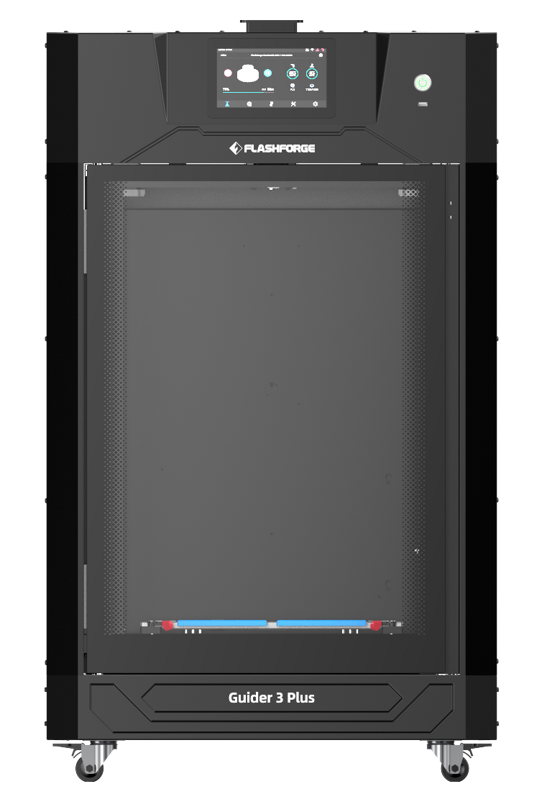

Flashforge Guider 3 Plus
