Popis

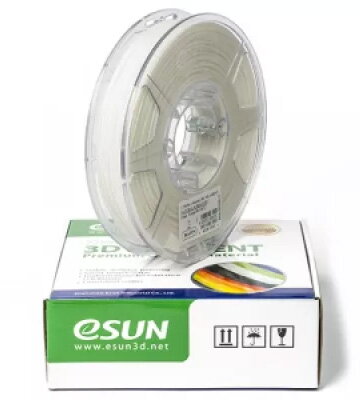

eSun ePLA + High Speed
Fast printing requires materials that can melt and cool quickly. However, to balance the speed of material melting and cooling, the physical properties of materials printed using fast techniques usually experience some decline. In order to provide 3D printed products with superior mechanical performance under fast printing conditions, esun have conducted numerous tests on various rapid formulations. As a result, ePLA+HS was produced, which is specifically designed to match high-speed printing and offers enhanced toughness.
Maximum Speed: 500mm/s
The Maximum Volume flow: 30mm³/s
The Maximum Acceleration: 20000mm/S2
Basic Data Printing Parameter
| Filament Typ | PLA |
| Diameter | 1,75 mm |
| Weight | 1,00 kg |
| Lenght | 335 m |
| Recomended Printing Temp Min | 210 ºC |
| Recomended Printing Temp Max | 230 ºC |
| Recomended Printbed Temperature Min | 45 ºC |
| Recomended Printbed Temperature Max | 60 ºC |
| Recomended Printing Speed Min | 50 mm/s |
| Recommended Printing Speed Max | 350 mm/s |
| Recomended Fan Speed Min | 100 % |
| Recomended Fan Speed Max | 100 % |
| General | |
| Specific gravity | 1,24 g/cm3 GB/T 1033 |
| Elongation | |
| Elongation at break | 17,5 % GB/T 1040 |
| Flexural | |
| Flexural Strenght | 78 MPa GB/T 9341 |
| Flexural Modulus | 2695 MPa GB/T 9341 |
| Other | |
| Impact Strength | 4,1 KJ/m2 GB/T 1843 |
| Filament spool selection | |
 |
 |
| 1. eSUN 1kg paper | |
| Ø Ds | 200 mm |
| Ø ds | 54 mm |
| Ws | 59 mm |
| ws | 53 mm |
| Emty weight Spool | 0,182 kg |
| Material of Spool | Carboard |
| DB | 205 mm |
| WB | 75 mm |
| HB | 212 mm |
| Emty weight box | 0,123 kg |
| Material of box | Carboard |
