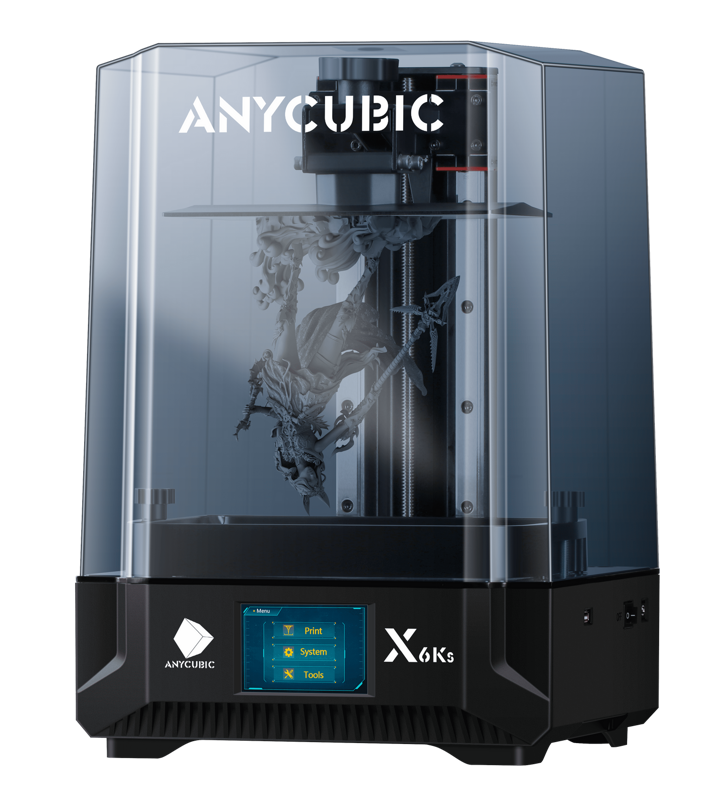

The Photon Mono X 6Ks
The Photon Mono X 6Ks is an updated version of the Photon Mono X 6k. Like its predecessor the Photon Mono 6Ks offers big printing volume and high resolution. Thanks to an upgraded LightTurbo matrix light source which reduces optical layer patterns and grid lines the Photon Mono X 6Ks gives you higher quality prints.
Advanced and Precise
Mono X 6Ks adopts a 9.1 inch 6K high-definition monochrome exposure screen with a resolution of up to 5760*3600px, bringing sharper and delicate details presentation supported by a high contrast ratio of 380:1.
Screen Protection
The printer comes with a high light transmittance anti-scratch film protector, effectively protecting the screen from wearing and scratches while ensuring printing accuracy. One free extra piece included for easy replacement.
Large Printing Dimension
A printing dimension of 195.84 x 122.4 x 200mm (LWH) brings you up to a maximum printing volume of 4.76L, ensuring more printings in one go.
Sharp and Delicate Details
The upgraded Anycubic LightTurbo matrix light source and high-precision textured optical lens provide a stable and even parallel light source, effectively removing optical layers and grid lines and creating a smooth and delicate model surface. Printing speed reaches 15-60mm/h, collect all your models even sooner.
The stable Dual-linear Z-axis Rail and its highly wear-resistant POM anti-backlash nuts restrain the Z-axis’ stability to the micron level, effectively eliminating printing layers and ensuring all printing details.
A Greater Printing Experience
The Laser-engraved technique that the printing platform adopts outstands sandblasting ones in platform flatness and adhesion, greatly reducing fall-offs and warping-ups and bringing you an even better success rate.
Upgraded Slicer Professional and Free
The upgraded free self-developed slicer Anycubic Photon Workshop 3.0 brings you an even better slicing experience in punching, supporting, shelling and layout arranging. Simplified UI makes slicing easier. The new model repairing function also helps boost the printing success rate.
Product List
| Construction an Technical Details | |||||||||||||||||||||||||
| Resin Print Technology | UV LCD | ||||||||||||||||||||||||
| Resin UV Light Type | Matrix UV Light Source | ||||||||||||||||||||||||
| Resin Display Type | monochrome LCD | ||||||||||||||||||||||||
| Resin Display resolution X | 5760 pixel | ||||||||||||||||||||||||
| Resin Display resolution Y | 3600 pixel | ||||||||||||||||||||||||
| Resin Display Resolution | 34 µm | ||||||||||||||||||||||||
| Recommended Printing Speed Max | 60 mm/h ( | Build Area | 122 mm x 196 mm x 200 mm | Build Plate Leveling System | manual Leveling | Build Chamber During Process | Closed | Installation Space / Requirements | Total Mass Overall Dimensions | 260 mm x 290 mm x 417 mm | Total Weight | 5.8 kg | Max Power Consumption | 80 W | Voltage | AC: V | Equipment | Touch Screen | Yes | ||||||
| Connection | |||||||||||||||||||||||||
| USB Port | Yes | ||||||||||||||||||||||||
| Accuracy | |||||||||||||||||||||||||
| Shipping | |||||||||||||||||||||||||
Anycubic Photon Mono X 6Ks
8189 Kč
