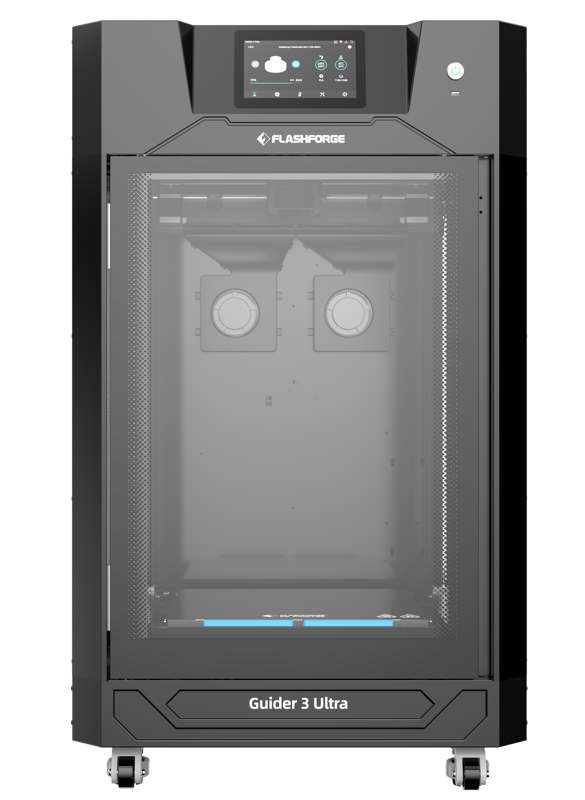

Flashforge Guider 3 Ultra

Flashforge Guider 3 Ultra

The Flashforge Guider 3 Ultra surpasses its predecessors in both speed and convenience to create an even better printing experience for its users. With the incredible maximum printing speed of 500mm/s, prints can be done in no time while still offering good quality. These improved features of Guider 3 Ultra together with other popular Flashforge-features is what makes this printer a cost-effective choice for small batch production.Highlights:Dual ExtrudersAuto-LevelingMaximum Extruder Temperature: 350°CMaximum Printing Speed: 500mm/s Čtěte více

Dočasně vyprodáno

128699 Kč

Popis

Guider 3 Ultra

The Flashforge Guider 3 Ultra surpasses its predecessors in both speed and convenience to create an even better printing experience for its users. With the incredible maximum printing speed of 500mm/s, prints can be done in no time while still offering good quality. These improved features of Guider 3 Ultra together with other popular Flashforge-features is what makes this printer a cost-effective choice for small batch production.

To provide a user-friendly and streamlined experience, the machine is equipped with multiple quality-of-life features, including a quick-release nozzle for quick tool-free maintenance, built-in filament detector, power loss recovery function and auto shutdown, advanced dual-fan cooling, easy-to-use magnetic build plate, HD camera for remote monitoring, HEPA 13 air filtration system, sealed filament drying chamber, silent design, and cloud platform. In terms of software, the Guider 3 Ultra model supports FlashPrint, Cura, and Slic3r.

Stable High-Speed Printing,Eliminating Ghosting & Ringing

Thanks to a lighter extruder and beam design the inertia when running at high speed can be reduced. Furthermore,with exclusive self-developed extruder vibration suppression algorithm, vibrations occurred during high-speed printing can be automatically compensated, thus reduce ringing in prints.

Printing speed up to: 500mm/s

Acceleration up to: 20000mm/s²

Flow rate up to: 32mm³/s

Air Cooling System

The powerful dual-fan air-blowing cooling system can quickly cool down the filament extruded by the nozzle, and ensure that each layer of filament is fully cooled in the high-speed printing mode, offering higher molding accuracy.

Dual Extruder Designfor Building ComplexModels

Built with high-strength dual Z-axis TBI ball screws and stable load-bearing platform, the Guider 3 Ultra guarantees precise positioning during the printing process, which allows it to produce accurate models of complex design.

Stable Print Quality Output

  • High-strength dual Z-axis TBI ball screws and stable load-bearing platform for precise positioning of printing each layer
  • 24/7 continuous and stable printing
  • After 10,000 hours of continuous use, it can still maintain stable printing performance.
  • After 100,000 times of dual-extruder switching testing, the extruders have no obvious shaking gaps, ensuring continuous and stable printing.

Excellent Surface Quality

Each layer is accurately positioned, with smooth and delicate finish. The extruder pressure compensation algorithm realizes accurate control of the amount of filament that is extruded in advance, resulting in smooth printing and flawless first layer. The exclusive vibration suppression algorithm automatically compensates the vibrations during high-speed printing, thus eliminating ringing.

Large Size, Expanding Boundaries

The Flashforge Guider 3 Ultra 3D printer offers a capacious build area of 13 x 13 x 23.6 inches (330 x 330 x 600 mm) for the single extruder mode and 11.8 x 13 x 23.6 inches (300 x 330 x 600 mm) for the dual extruder. It lets you produce models or various sizes, including fairly large ones, without the need of splitting them and in batches, which makes for time-saving and increased productivity.

Features That Make a Difference

  • Filament Detector, Filament Run-out Reminder Automatically detect filament shortageand pause printing. Printing can be resumed after filament fed.
  • Power Loss Recovery: Avoid failed prints due to accidental power outages and guarantee normal printing
  • Built-in HD Camera: Remote Real-time Monitoring
  • HEPA 13 Air Filtration System: Filter dust, particles and odors, ensuringan environmentally-friendly and safe working environment
  • Sealed Filament Drying Chamber
  • Auto Shutdown: Models can be printed at night safely and ready for pick-up during the day.

The Flashforge Guider 3 Ultra 3D printer is available in black. Its elegant look and ergonomic design make it ideal for any studio, small enterprise, or educational institute. The printer dimensions are 25 x 21.65 x 42.13 in (635 x 550 x 1070 mm).

Materials

Thanks to the extruder temperature of 350 °C and platform heated up to 120 °C making for strong first layer adhesion, the Flashforge Guider 3 Ultra can successfully print with a wide range of general and engineering filaments, including PLA, ABS, PC, TPE, PETG, ASA, PP, nylon, glass, and others ensuring high dimension accuracy and surface quality. Glass fiber reinforced and carbon fiber reinforced filaments should be used with high-strength nozzles.

The printer is an open system compatible with third-party materials, which makes the choice of filaments literally unlimited.

Printer controls and software

The Flashforge Guider 3 Ultra features a 7" smart LCD touchscreen with an intuitive and well-organized UI providing fast and convenient access to all printer settings and parameters. The device boasts Wi-Fi and Ethernet connectivity as well as a USB slot to transfer printing tasks from the PC to the printer through a U disk.

The machine comes with the proprietary FlashPrint slicing software featuring a powerful set of functions and user-friendly renewed interface. It is capable of preparing a slicing file by just a few clicks, which makes for fast, efficient, and smooth operation. Apart from a convenient preview function and intelligent path planning algorithm, the program allows one to effectively manage multiple machines, adjust printing parameters in real time, auto repair damaged meshes, create personalized designs, use files from the memory list, and much more.



Construction an Technical Details
Max Nozzle Temperature 350 ºC
Extruder Type Dual-gear direct drive
Build Area 330 mm x 330 mm x 600 mm
Dual Build Area 300 mm x 330 mm x 600 mm
Build Plate Temp Max 120 ºC
Build Plate Material Flexible Steel Plate
Build Plate Leveling System automatic
Build Chamber During Process Open or Closed
Filament Chamber Closed Yes
Extruder Number Of 2

Installation Space / Requirements
Total Mass Overall Dimensions 635 mm x 550 mm x 1070 mm
Max Power Consumption 850 W
Voltage AC: 100 V240 V (50-60 Hz)

Equipment
Hepa Filter Yes
Power Loss Fail Safe Yes
Touch Screen Yes
Camera Yes

Connection
USB Port Yes
Ethernet Port Yes
WLAN Yes
Cloud Control Yes

Accuracy
Layer Height 0.05 - 0.4 mm

Shipping
Shipping Box 775 mm x 690 mm x 1235 mm
