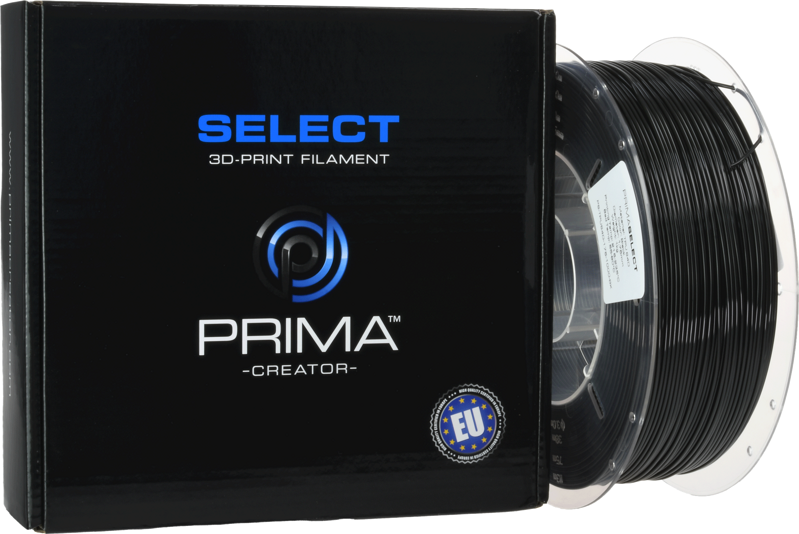

PrimaSelect TPU 90A
Prima SELECT TPU 90A is a high-quality 3D printing filament made from thermoplastic polyurethane (TPU), known for its flexibility, durability, and impact resistance. With a hardness of 90A on the Shore scale, this filament offers an excellent balance between elasticity and strength, making it ideal for applications requiring both flexibility and durability.HighlightsEasy to usePerfect combination of flexibility and elasticityHigh wear resistance Čtěte více

Dočasně vyprodáno

1099 Kč

Popis

Prima SELECT TPU 90A

Prima SELECT TPU 90A is a high-quality 3D printing filament made from thermoplastic polyurethane (TPU), known for its flexibility, durability, and impact resistance. With a hardness of 90A on the Shore scale, this filament offers an excellent balance between elasticity and strength, making it ideal for applications requiring both flexibility and durability.

Material Properties:

  • Flexibility: With a Shore hardness of 90A, Prima SELECT TPU 90A is highly flexible, making it perfect for creating parts that need to bend or stretch without breaking.
  • Wear Resistance: TPU is known for its high wear resistance, meaning prints can withstand mechanical wear over time.
  • Chemical Resistance: TPU is resistant to many oils, greases, and solvents, making it suitable for industrial and technical applications.



Printing Characteristics:

  • Ease of Printing: Prima SELECT TPU 90A is designed to be user-friendly, allowing for the printing of flexible parts with high precision without filament tangling or clogging.
  • Low Warping: TPU material tends to have low warping, resulting in more reliable prints.
  • Printing Temperature: The recommended printing temperature is between 210°C and 230°C, with a bed temperature of 40°C to 60°C for optimal adhesion.



Applications:

  • Prototypes: Ideal for creating flexible and durable prototypes.
  • End Products: Often used for manufacturing end-use products such as gaskets, seals, hoses, and elastic components.
  • Fashion and Accessories: Perfect for creating custom jewelry, shoe soles, and other flexible design objects.



Environmental Aspects:

  • Recyclability: TPU is recyclable and can be reused, making it an environmentally friendly choice for various applications.

Prima SELECT TPU 90A is a versatile and high-performance filament that combines flexibility, durability, and user-friendliness. With its excellent properties, it is an ideal choice for creating everything from functional prototypes to end-use products that require both flexibility and strength. Whether you are working on industrial applications, fashion, or technical projects, Prima SELECT TPU 90A offers the characteristics you need for successful 3D printing.



Basic Data Printing Parameter

Filament Typ FLEX TPU
Diameter 1,75 mm
Weight 1,00 kg
Lenght 368 m

Recomended Printing Temp Min 210 ºC
Recomended Printing Temp Max 230 ºC
Recomended Printbed Temperature Min 55 ºC
Recomended Printbed Temperature Max 80 ºC
Recomended Printing Speed Min 20 mm/s
Recommended Printing Speed Max 50 mm/s
Recomended Fan Speed Max 100 %

General
Specific gravity 1,13 g/cm3   ISO 1183

Tensile
Tensile strength 22 MPa   ISO 527

Elongation
Elongation at break 1320 %   ISO 527

Filament spool selection
1. PrimaSelect 2024 750g/1kg
    Ø Ds 200 mm
    Ø ds 55 mm
    Ws 63 mm
    DB 222 mm
    WB 70 mm
    HB 210 mm
    Material of box Carboard


PrimaSelect TPU 90A
