NinjaTek Cheetah Flexible
Cheetah flexible filament is the fastest and easiest to print flexible filament on the market. The focus in development of this material was on optimizing the user experience. The result is a filament that is printable across all types of desktop 3D printers at ABS and PLA speeds, many times twice the speed of other flexible materials on the market.
Cheetah filament possesses industry leading durability along with impact strength 84% greater than the next product(ABS). The abrasion resistance is also second only to NinjaTek's Armadillo product, making Cheetah the perfect blend of speed, toughness and strength.
Suggested Applications: grips, guides, hinges, sleeves & snap-fit parts.
- Shore Hardness= 95A
- Prints at speeds greater than 60 mm/s with standard ABS settings
- Significantly greater impact strength than all widely used materials - 84% greater than ABS!
- Industry leading toughness and durability to ensure longevity in printed parts
- Abrasion resistance 40% better than ABS and 76% better than PLA
- 580% elongation capabilities improve ability to withstand wear and tear
- Patented low friction exterior allows for smooth feeding
- Chemical resistance to many materials, including: naphtha, ASTM Oils #1-3, petroleum and freon
- Consistent diameter and material properties providing reliable, high quality prints
- REACH and RoHS 2002/95/EC Directive compliant
Extruder Temperature:
235°C 245°C
Platform Temperature:
Room temperature 40°C
Glue or blue painters tape is suggested if not using a heated bed.
Print Speed:
Top and bottom layers: 30-45 mm/ sec (600-1200 mm/ min)
Infill speeds: 60-80 mm/ sec (3600-4800 mm/ min)
Layer 2+ use cooling fan if available.
Basic Data Printing Parameter
Filament Typ | FLEX TPU |
Diameter | 1,75 mm |
Tolerance | 0,05 mm |
Weight | 1,00 kg |
Lenght | 341 m |
Recomended Printing Temp Min | 225 ºC |
Recomended Printing Temp Max | 250 ºC |
Recomended Printbed Temperature Max | 50 ºC |
Recomended Printing Speed Min | 25 mm/s |
Recommended Printing Speed Max | 80 mm/s |
General | |
Specific gravity | 1,22 g/cm3 ASTM D792 |
Temperature | |
Heat deflection temp | 74 °C ASTM D648 |
Tensile | |
Tensile strength | 9 MPa ASTM D638 |
Tensile modulus | 26 MPa ASTM D638 |
Elongation | |
Elongation at yield | 55 % ASTM D638 |
Elongation at break | 580 % ASTM D638 |
Other | |
Impact Strength | 19,1 KJ/m2 ASTM D256 |
Shore D Hardness | 95A D ASTM D2240 |

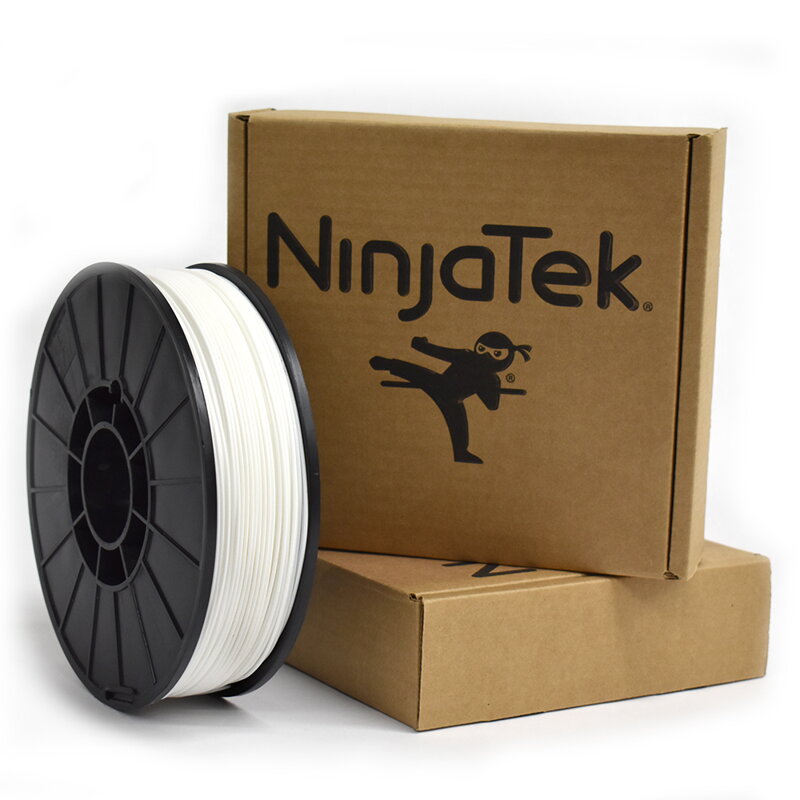

NinjaTek Cheetah Flexible - 1.75mm - 1 kg - Snow White
