ignificantly outclass all contemporaries. This core feature shines especially in Multi-Material prints, where it can cut down print times dramatically, but also when using filaments with temperature-dependent features such as Varioshore.
Сompatible with common 3D printers
The INo Trident is compatible with (almost) every 3D-Printer and seamlessly integrates with Klipper. It uses USB to communicate with the Control Software and needs a 24V power supply sufficient to power a regular Hotend, around 60 Watts of continuous draw. The hardware supports both USB and SPI from the get go. To install the Plasmics INo Trident in your printer you only have to connect the coms bus to your Raspberrys usb port and connect the electronics' power supply to the printers 24V rail (60W draw max).
Rapid Heatup & Cooldown
The INo Trident heats up to 250°C in under 4 seconds. Thats 12X faster than a High-End 50W Hotend and more than 20X faster compared to a regular 30W Hotend.
The INo Trident achieves it's significantly shorter heat-up time by leveraging two features only available with induction heating. The INo Trident transfers energy quicker and the heating element requires less mass for safe operation - combined resulting in shorter wait times.
This core feature speeds up multi-material prints with frequent material changes by a factor of 5 in regular use cases and up to 20x in certain edgecases.
The INo Trident can cool down 5X faster compared to a regular 30W Hotend.
The heating element within the INo Trident needs less mass for safe operation - thus it cools down faster because less energy needs to be dissipated. Additionally the more accurate temperature probe prevents a temperature overshoot.
The cooldown was measured without filament flow and without a cooling fan. Even in this worst case scenario the INo Trident performed markedly better than comparable nozzles. In a real print this results in rapid cooldown and less oozing.
Technical specifications
- Max printing temperature: 500°C
- Temperature sensor type: k-type thermocuple
- Nozzle material: tool steel
- Heatsink material: aluminium
- Voltage options: 24V or 48V
- Filament diameter: 1.75mm or 2.85mm
- Nozzle diameter: 0.4mm and 0.6mm for 1.75; 0.6mm and 1.0mm for 2.85
- Power: 50W or 100W
- Weight: around 30g
- Dimensions: 25.7mm * h60mm

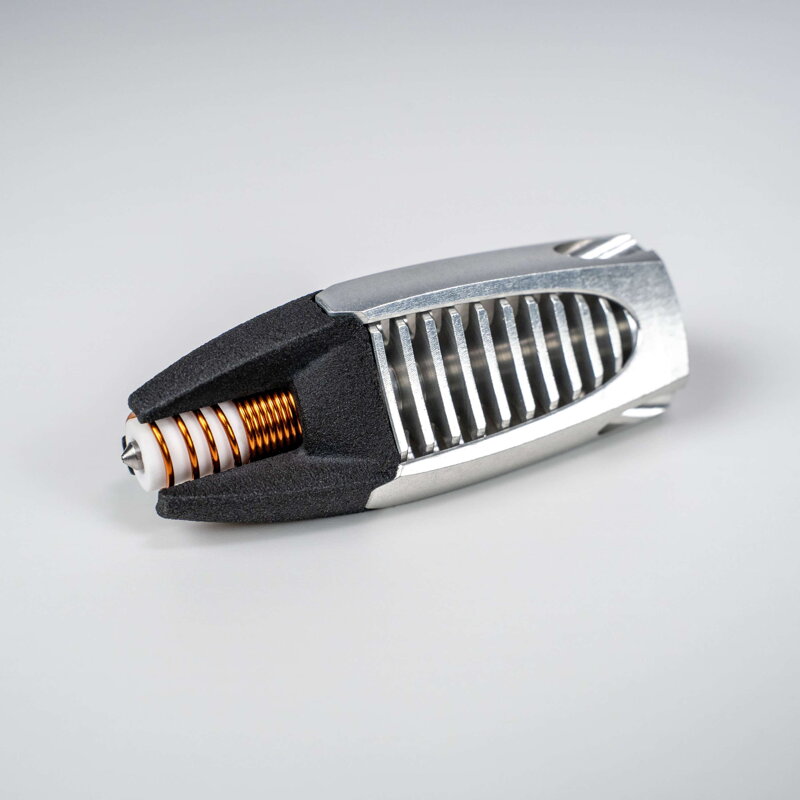

Plasmics INo Trident 175-20-04 Hotend - 1,75 mm
