E3D Revo High Temp Hotside - PT100 - Fully Loaded Kit

HTX Hotside Kits

Standalone Revo Hotside Kit

• 1 x HT block
• 1 x PT100 or PT1000 sensor
• 1 x High precision (HT) or High Temperature (UHT) heater cartridge
• 1 x Revo spring

Single Nozzle Kit:

• 1 x HT block
• 1 x PT100 or PT1000 sensor
• 1 x High precision (HT) or High Temperature (UHT) heater cartridge
• 1 x Revo spring
• 1 x Revo HTX 0.4mm nozzle

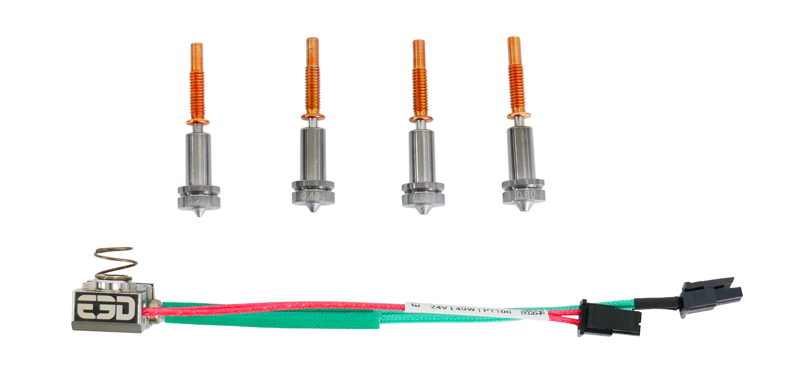

Fully Loaded Kit:

• 1 x HT block
• 1 x PT100 or PT1000 sensor
• 1 x High precision (HT) or High Temperature (UHT) heater cartridge
• 1 x Revo spring
• 1 x Revo HTX 0.25mm, 0.4mm, 0.6mm, and 0.8mm nozzles

Revo HTX Hotsides

HTX Hotside kits allow Revo users to upgrade their set-ups to enable reliable printing at higher temperatures with materials such as PEEK or PEI.

High temperature, abrasive resistance Nozzles

Much like ObXidian, HTX nozzles have a hardened steel tip and copper spreader segment to optimise the transmission of heat to the heatsink. This assembly is then coated with Chromium Nitride to provide abrasive resistance up to 500°C.

Key features:

• Maximum temperature: 400°C/500°C
• Filament diameter: 1.75mm
• Voltage: 24V
• Power: 40W or 65W

Compatible with: Revo Micro, Revo Six, Revo Voron, Revo Creality, Revo Hemera XS, Revo Prusa MK3, Revo Prusa Mini, Revo MicroSwiss NG, Revo Biqu H2 V2, and Revo LGX.

Please note:

• Revo™ Nozzles are not compatible with V6-style heaterblocks
• If your printer is not already using PT100 sensing then an amplifier board will be required to use the PT100 hotside variant.
• You may need to adjust your Z offset when changing nozzles.
• We do not recommend the use of abrasive materials with 0.25mm nozzles. The particle sizes, especially with fibres, can often be larger than 0.25mm, significantly increasing the risk of clogging the nozzle.
