now take shape with millimeter precision, the tolerance is less than ± 0.01 mm.The process of removing sharp edges from the nozzles is a very important step as this makes up a big part of the result. If there is to much sharp edges left on the nozzle it will make the nozzle more prone to clog. So it´s essential that the nozzle is very smooth and clean before it is used. In every batch a few nozzles are selected and cut in half to make sure that every specification is met, and that the surface is in perfect condition. The nozzles are then checked for one last time and packed individually in a protective box – ready to be shipped to you. 0 = 0.20mm 3 = 0.40mm 4 = 0.60mm 5 = 0.80mm
Recommendations
For best results and optimal print quality, we highly recommend that you re-level your build plate after changing to a new nozzle. Note that a PrimaCreator nozzle might be compatible with your printer, but the distance between nozzle and build plate must be adjusted.
The process
- The process of making a PrimaCreator nozzle begins with a selected high-quality material. When the material reaches the factory, there is first an optical inspection made of the material that are going to be used for each batch of nozzles. Then it´s time to clamp the material, in other words, make it into a long rod. In our process this only is done once, in many other (cheaper) cases, this process must be repeated several times, often as many as 3-4 times and yet you don´t get the same results.
| Brand | PrimaCreator |
| Type | RepRap M6 3mm |
| Material | Brass |
| Diameter | 0,20 mm |
| Packaging | 1 |
| Fits for | |
| Olsson Block | |
| Ultimaker 2+ | |
| Ultimaker 2+ Extended | |
| Ultimaker 2 with Olsson block upgrade | |
| Ultimaker 2 Extended with Olsson block upgrade | |
| Ultimaker Original *1 *2 | |
| Ultimaker Original+ *1 *2 | |
| Lulzbot TAZ 3 with hexagon hotend upgrade *2 | |
| Lulzbot TAZ 4 with hexagon hotend upgrade *2 | |
| Lulzbot TAZ 5 | |
| Lulzbot TAZ 6 *2 *3 | |
| 3ntr A2 v2 | |
| 3ntr A4 v3 | |
| Every printer with a E3D V4 3.0mm hotend *2 | |
| Every printer with a E3D V5 3.0mm hotend *2 | |
| Every printer with a E3D V6 3.0mm hotend *2 | |
| *1 = You will need to adjust the fan shroud since the nozzle is shorter than the original nozzle. | |
| *2 = You will need to mount it with the nozzle not placed against the front face of the heater block but against the heat break/isolator tube to create a seal. | |
| *3 = Will require disabling of the automatic bed leveling since the ruby tip is not conductive. |

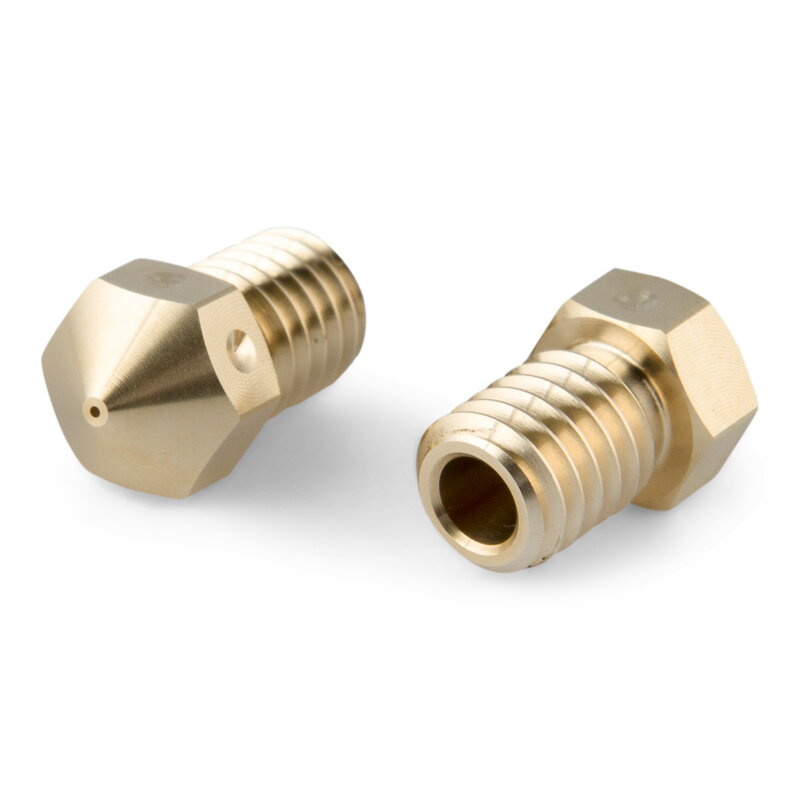

RepRap M6 Brass Nozzle 3mm - 0,2 mm - 1 pcs
