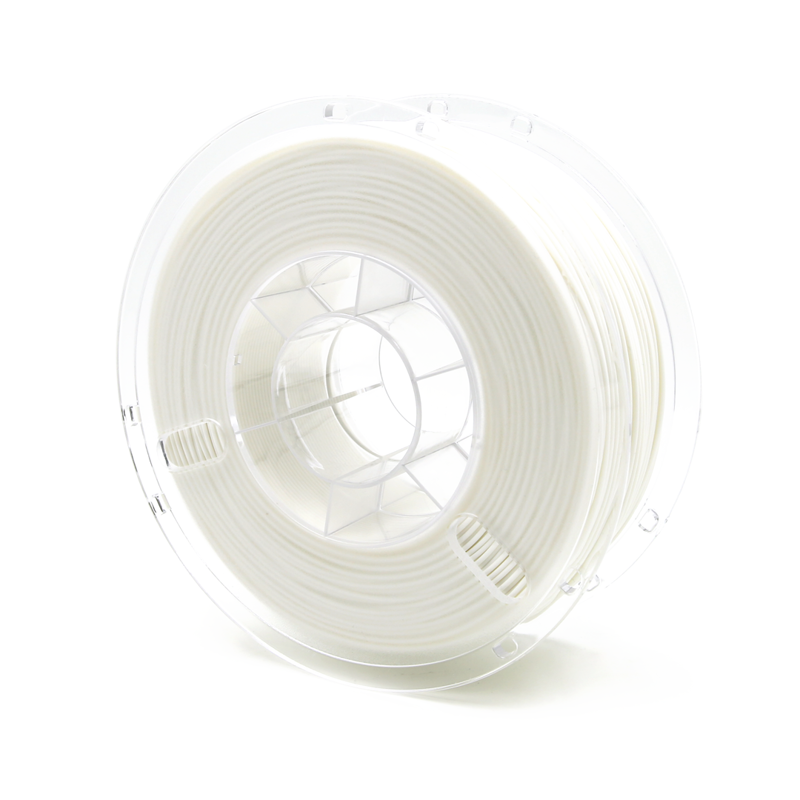

Raise3D Premium PLA
PLA or Polylactic acid is a bio-degradable industrial thermoplastic, which is easy to print, durable and relatively strong. It is also non-toxic and free of unpleasant odor. Parts printed with PLA are widely used in the prototyping stage of product development to prove a concept, check the shape, confirm fit, etc. Models and parts printed with PLA are widely used in product demonstration and presentation in architecture, gaming and movie industries.
Applications
- Prototyping and design
- Architecture models
- Education and visualization
- Manufacture aids
- Art and sculpture
Material Performance
Printing Notifications:
- Cooling fan is highly recommended to improve the part finish and to keep the printing chamber always lower than 60 °C.
- PVA can be used for cold-water-soluble support material for PLA.
For ideaMaker Users:
Choose the right printing profile for PLA on ideaMaker IOand use it on ideaMaker. Download the latest version of ideaMaker.
Basic Data | |
Filament Typ | PLA |
Diameter | 1,75 mm |
Tolerance | 0,05 mm |
Weight | 1,00 kg |
Lenght | 346 m |
Color | Squirrel grey - RAL 7000 |
Color | grey |
Printing Parameter | |
Recomended Printing Temp Min | 190 ºC |
Recomended Printing Temp Max | 220 ºC |
Recomended Printbed Temperature Min | 40 ºC |
Recomended Printbed Temperature Max | 55 ºC |
Recomended Printing Speed Min | 50 mm/s |
Recommended Printing Speed Max | 70 mm/s |
Recomended Fan Speed Max | 100 % |
Recomended Retraction Min | 1 mm |
Recomended Retraction Max | 3 mm |
General | |
Specific gravity | 1,2 g/cm3 ASTM D792 |
Temperature | |
Vicat softening temp | 130 °C |
Tensile | |
Tensile modulus | 2636 MPa ASTM D638 |
Elongation | |
Elongation at break | 1,9 % ASTM D638 |
Flexural | |
Flexural Strenght | 85,1 MPa ASTM D790 |
Flexural Modulus | 3283 MPa ASTM D790 |
Other | |
Impact Strength | 2,7 KJ/m2 AST D256 |
Raise3D Premium PLA - 1.75mm - 1 kg
Doplňující informace
Kategorie: | PLA |
Barva: | šedá |
Váha materiálu: | 1 kg |
Průměr: | 1,75 mm |
1219 Kč
