Bondtech HeatLink 300°C Thermistor

Bondtech HeatLink 300°C Thermistor

Have it your way!

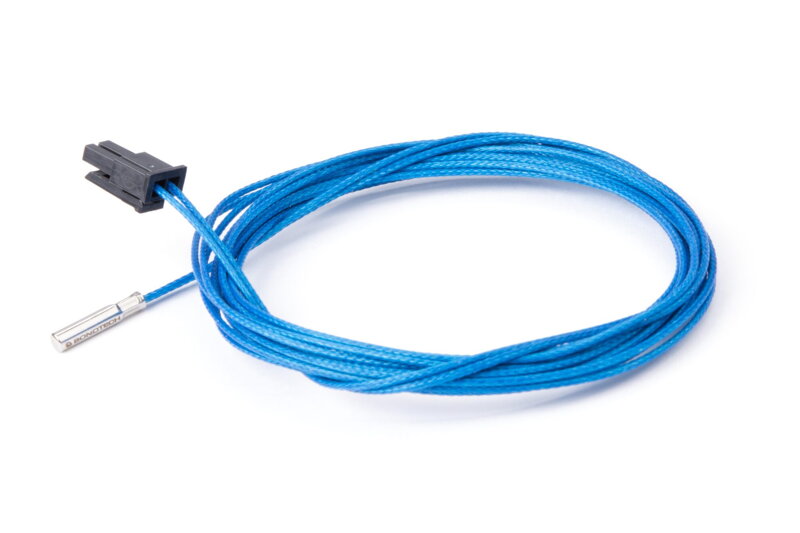

This 300C thermistor based on the SeMitec 104NT-4-R025H42G temperature sensor and uses a Molex micro-fit 3.0 female connector to enable extending it with one of the HeatLink interface cables and connect to your printer without hassle.

Use the following code to customize your Marlin2.0 to use this thermistor:
#define TEMP_SENSOR_0 5

Check the R/T table here:
104NT-4-R025H42G_RT_table.pdf

The HeatLink range is an alternative group of thermistors and heater cables enabled with Molex micro-fit connectors, complemented by several short interface cables for connecting to dozens of 3D printer models to bring ease of use to their owners.

HeatLink is the answer to the growing demand for powerful heaters and high temperature thermistors that are ready to use and easy to install.

Plug & Play thermistors and heaters from Bondtech.

Ready to use on ( at least ) 25 different Creality and Prusa models.

Pair a Bondtech thermistor or heater with a HeatLink interface cable to plug into any printer without soldering or crimping.

Each Interface Cable is 50mm long and will fit entirely inside the control box.

Bondtech HeatLink Interface Cables Compatibility Table

HeatLink JST XH-2 W/ LOCK	HeatLink JST XHP-2	HeatLink JST VHR-2N	HeatLink JST SMP-02V-BC	HeatLink Molex MX-50-57-9002	HeatLink Ferrule
CR-10S Pro CR-10S Pro V2 CR-10 Max CR-10 V2 CR-10 V3	Ender-3 Ender-3 Pro Ender-3 V2 CR-10 CR-10 mini CR-10 S CR-10 S4 CR-10 S5 CR-5 Pro CR-X Ender-6		Ender-5 Ender-5 Pro Ender-5 Plus		i3 MK3 / S / + i3 MK2.5 / S i3 MK2 / S

*The table above refers to connecting Bondtech HeatLink Thermistors only.
