Popis
fa
|
Product ID
|
M (mm)
Nominal Diameter |
P (mm)
Thread Pitch |
L (mm)
Bolt Length |
D (mm)
Head Diameter |
H (mm)
Head Thickness |
k (mm)
Hexagon Across Flats |
t (mm)
Groove Depth |
Screwdriver Bit Size |
| AA005 | 2.5 | 0.45 | 10 | 4.5 | 2.5 | 2 | 1.1 | H2 |
* Compliant with the requirements of GB/T 70.2-2015 standard [Equivalent standards: ISO 4762, ASME/ANSI B 18.3.1M - 1986 (R1993), DIN EN ISO 12474]
Forgot the screw specs? Just tap the Screw Gauge for sorting help.
Basic Information
| Surface Treatment | No |
| Mounting Hole Shape | Hex socket |
| Screw Type | Complete thread |
| Material | Stainless steel |
| Thread Ridge Type | Metric coarse |
| Color | Silver |
Product Feature
-

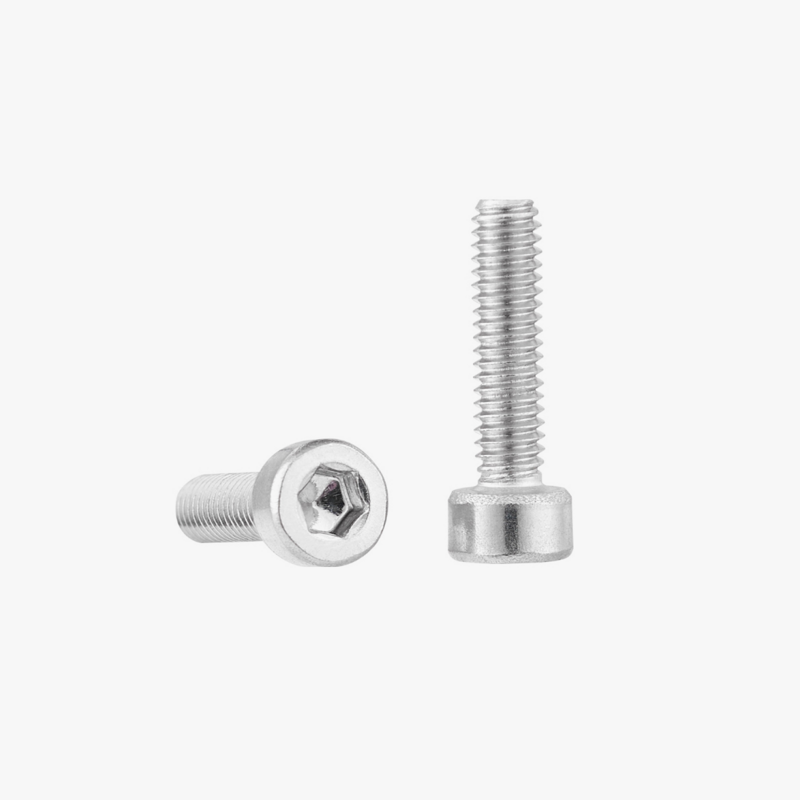

Stainless Steel Socket Head Cap Machine Screws (SHCS)
-
Nominal thread: M2.5~M5
-
Strength grade: 4.8
-
Full thread series (except M3*23)
-
Type of thread: Metric coarse thread (currently all screws are metric coarse thread)
