Overview
Z-NYLON is a versatile and strong 3D printing filament resistant to high temperatures and various chemicals. It can be post-processed with tools meant for machining metals. Z-NYLON is hard to break and easy to paint as it can be colored with commonly used, acid-based clothing dyes.
The filament quickly absorbs moisture and should be stored in a water-proof bag with a moisture absorber. As all nylon-based materials, Z-NYLON has a relatively high shrinkage so using it is not advisable in 3D printing large geometric shapes with steep slopes. To reduce the shrinkage, it is recommended to work with HEPA Cover attached on the M Series Plus 3D printers.
Applications
- Tools
- Hinges
- Buckles
- Gears
- Functional prototypes
- Mechanical parts
Below a fully functional vise 3D printed with Z-NYLON.
Durability
- Z-NYLON is very strong. It can be post-processed with tools meant for machining metal.
Chemical resistance
Z-NYLON is resistant to a wide range of chemicals including light alkalis and acids.
Ease of dyeing
Models 3D printed with Z-NYLON can be easily colored with dyes commonly used for clothing.
| Basic Data | | | Filament Typ | Nylon |
| Diameter | 1,75 mm |
| Tolerance | 0,05 mm |
| Weight | 0,8 kg |
| Lenght | 324 m |
| |
Printing Parameter | | | Recomended Printing Temp Max | 260 ºC |
| Recomended Printbed Temperature Max | 90 ºC |
| |
| General | |
| Specific gravity | 1,027 g/cm3 ISO 1183-3:2003 |
| |
| Temperature | |
| Heat deflection temp | 130 °C ISO 75-2/B |
| |
| Tensile | |
| Tensile strength | 33,22 MPa ISO 527:1998 |
| |
| Elongation | |
| Elongation at yield | 9,17 % ISO 527:1998 |
| Elongation at break | 23,62 % ISO 527:1998 |
| |
| Flexural | |
| Flexural Strenght | 38,3 MPa ISO 178:2011 |
| Flexural Modulus | 781,01 MPa ISO 178:2011 |
| |
| Other | |
| Impact Strength | 12,81 KJ/m2 ISO 180:2004 |
| Shore D Hardness | 62 D ISO 868:1998 |

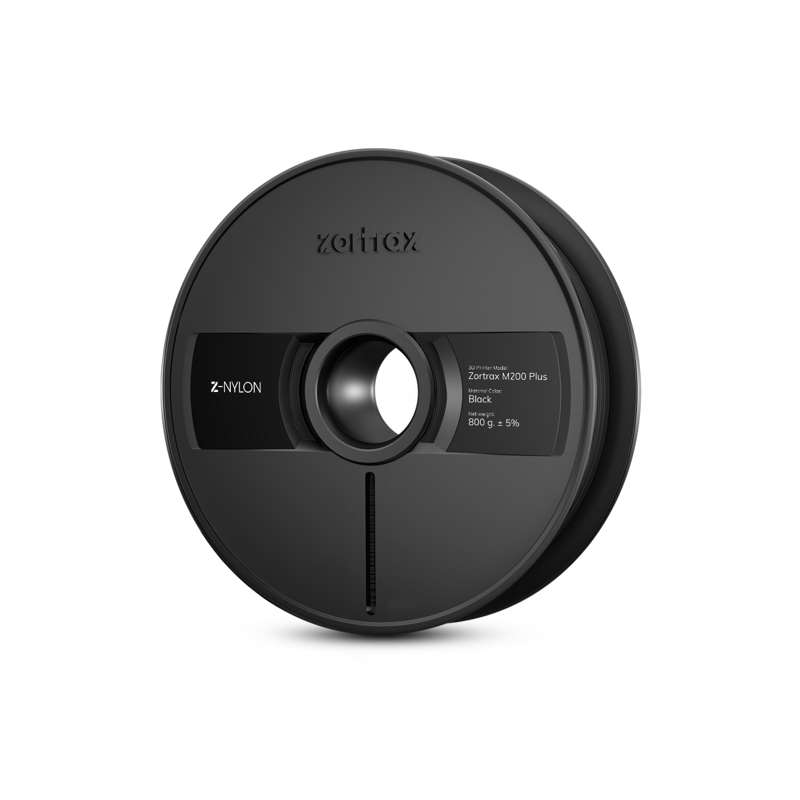

Zortrax Z-NYLON Filament - 1.75mm - 800g - Black
